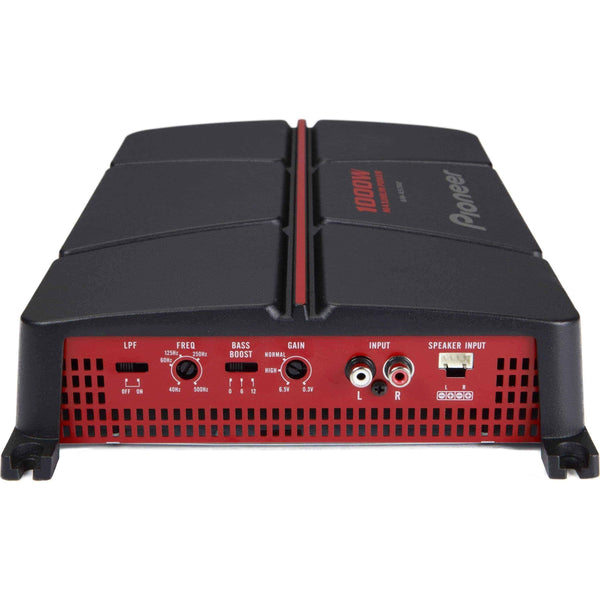

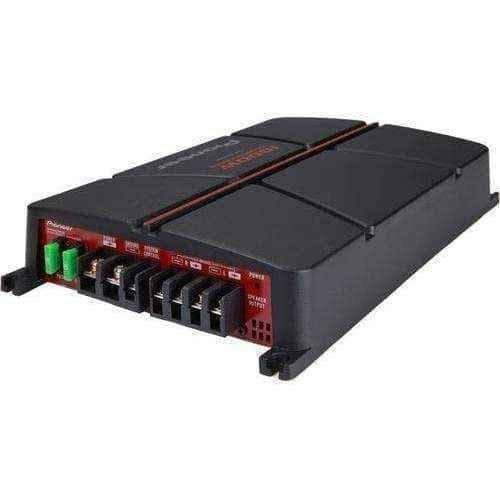

Pioneer gm a5702 1000 watt amp

Pioneer gm a5702 1000 watt amp review.

• Product Dimensions: 35.6 x 21.5 x 6 cm ; 2.64 Kg
• Boxed-product Weight: 2.7 Kg
• 2-Channel Bridgeable Amplifier (1000W)

• Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V , you can turn your in-car audio experience into the sound staging environment that you’re looking for.

  The GM-A5702 offers support for 2 Ohm and 4 Ohm speakers, and can produce a massive power of 1000 W.

• Pioneer gm a5702 1000 watt amp Main Features

  Chassis size (W x H x D)	356(W) X 60(H) X 215(D) mm
  Unit weight	2.2
  Maximum power input	1000W (Bridged) or 2 x 300W (4 Ω) or 2 x 500 W (2 Ω)
  2-channel
  CEA 2006 Power	2 x 150W (4 Ω)
  Continuous power output	2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω)
  Load impedance capability	2-8 ohm allowable (stereo)
  Frequency response	10Hz ~ 70kHz (+0dB , -3dB) Hz
  Distortion	< 0.05 %
  S/N ratio	> 96 dB
  Bass Boost	50Hz; 0/6/12dB
  LPF	40-500 Hz (-12 dB/oct)
  Speaker Terminals	Screw-type
  Speaker Input Level	3 - 26 V
  Max. current consumption	36A

• Connections

  High Voltage Output

  300 mV - 6.5 V
