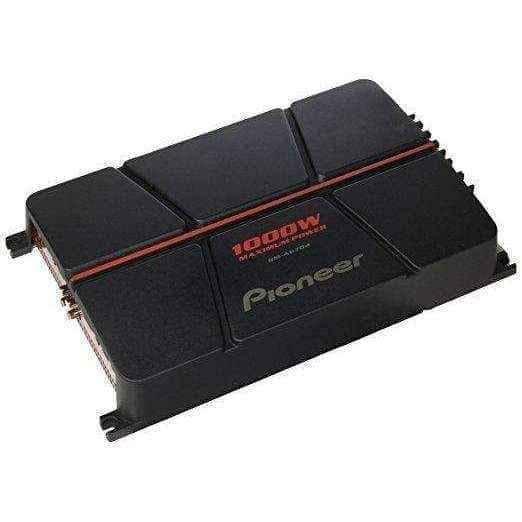

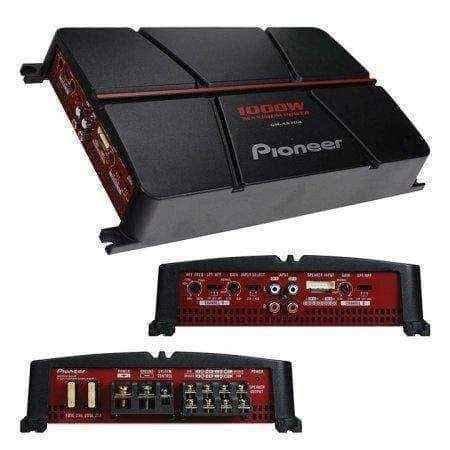

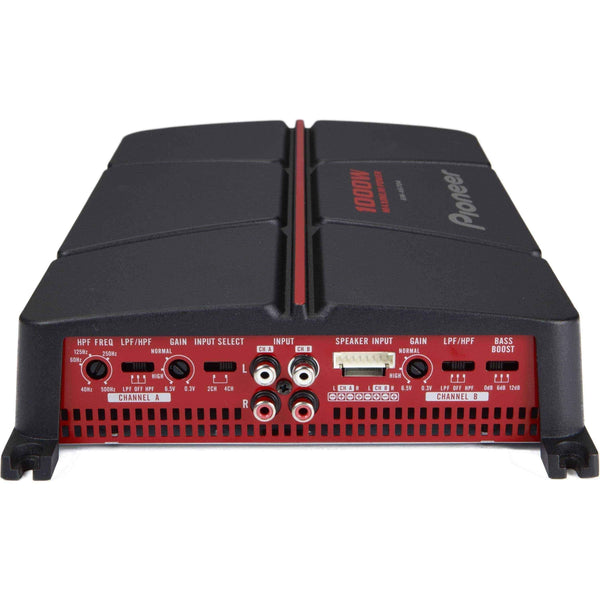

Pioneer gm a6704 | Pioneer amplifier

Pioneer gm a6704 | Pioneer amplifier review.

• 1000 Watts Max Power
• Automatic signal sensing and Turn-On
• Variable high pass filter
• Adjustable bass boost
• Pioneer GM-A6704 4-Channel Bridgeable Amplifier with Bass Boost, Black/red
• Give into your deepest desire for power. Work it out how you want with the bridgeable amps. Just consider the consequences whatever you do: pure and clean, distortion-free power.

• The GM-A6704 will ignite your system, but keep the heat under wraps. These amps are techno wonders and will rumble you to the core.

• Main Features

  HPF	40-500Hz (-12 dB/oct)
  Speaker Terminals	Screw-type
  Speaker Input Level	3 - 26 V
  Max. current consumption	31A
  Chassis size (W x H x D)	356(W) X 60(H) X 215(D)
  Unit weight	2.2
  Maximum power input	1000W (Bridged) or 4 x 170W (4 Ω) or 4 x 250 W (2 Ω)
  4-channel
  CEA 2006 Power	4 x 60W (4 Ω)
  Continuous power output	4 x 60W (4 Ω) or 4 x 95W (2Ω) or 2 x 190 W (4Ω bridged)
  Variable LPF
  Load impedance capability	2-8 ohm allowable (stereo)
  Frequency response	10Hz ~ 70kHz (+0dB , -3dB) Hz
  Distortion	< 0.05 %
  S/N ratio	> 95 dB
  Bass Boost	50Hz; 0-12dB
  LPF	40-500Hz (-12 dB/oct)

  Connections

  High Voltage Output

  300 mV - 6.5 V

  Audio

  Variable HPF
