Pioneer VSX LX302 B Elite AV Receiver review.
- Channels: 7
- Amplification Type: Direct Energy
- 170 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
- Dolby Atmos®/Dolby Surround
- DTS:X/DTS Neural:X
- Reflex Optimizer
- Dolby® TrueHD/Dolby Digital Plus
- DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
- DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
- Digital Core Engine with Cirrus Logic (Quad Core) x1
- 384 kHz/32-bit DAC (AK4458)
- HDMI Audio Return Channel (ARC)
- MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ - Advanced Sound Retriever (2ch)
- Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance - AM/FM Tuner 40 Presets
- Compatible with USB DAB Adapter AS-DB100
- Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
- HDR10 and BT.2020 Support
- Dolby Vision Compatible
- Ultra HD Upscaling (1080p 4K)
- 3D Ready (Blu-ray Disc™, Broadcast, and Games)
- Deep Colour (36-bit), “x.v.Colour”
- Whole Home Audio with FlareConnect
- Chromecast built-in*
- DTS Play-Fi* Ready
- Apple AirPlay Certified
- Spotify®, TIDAL, Deezer, and Pandora Music-Streaming Services Ready
- Internet Radio with TuneIn
- Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF , FL AC, WAV
• 5.6/2.8 MHz DSD Playback (except via Wireless LAN)
• Dolby® TrueHD Playback (via USB only) - Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
- Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
- Works with Pioneer Remote App (iOS/Android) for Multi-room Entertainment Control and Network Streaming
- GUI with System/Network Setup Menu
- Auto Power Off in HDMI Standby Through
- Sleep Timer
- User-Friendly Simple Remote Control
- Front Terminals
-
- HDMI 1 In
- USB 1 In for USB Drive
- MCACC Setup MIC In
- Audio 1 In (Mini Stereo Jack)
- Phones 1 Out

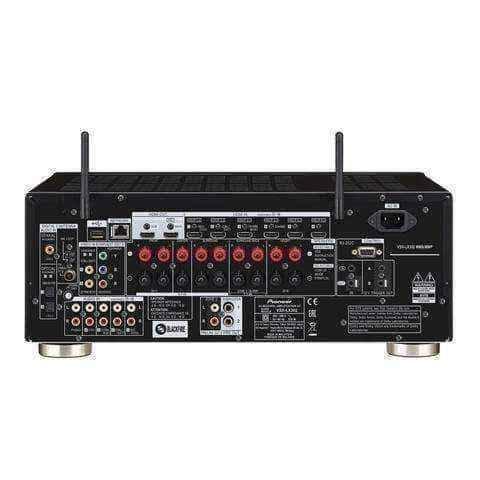

Rear Terminals
- HDMI 6 In (4 Assignable)
- HDMI 2 Out (1 for MAIN, 1 for SUB)
- Ethernet 1 In
- USB 1 In for USB Drive
- AV (Component) 1 In (Assignable)
- AV (Composite) 2 In (Assignable)
- Audio 1 In (Assignable)
- Phono (MM) 1 In
- Digital Coaxial 1 In (Assignable)
- Digital Optical 2 In (Assignable)
- Subwoofer 2 Pre Out
- Zone 2 Pre/Line Out
- Speaker 9 ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2/Bi-AMP, HEIGHT/SP B)
- IR 1 In/1 Out
- 12 V Trigger 2 Out/RS-232C
- FM/AM Antenna
- Dimensions (W x H x D): 435 x 173 x 370.5 mm
- Weight: 10 kg
- EU plug. For UK you need UK adapter.
